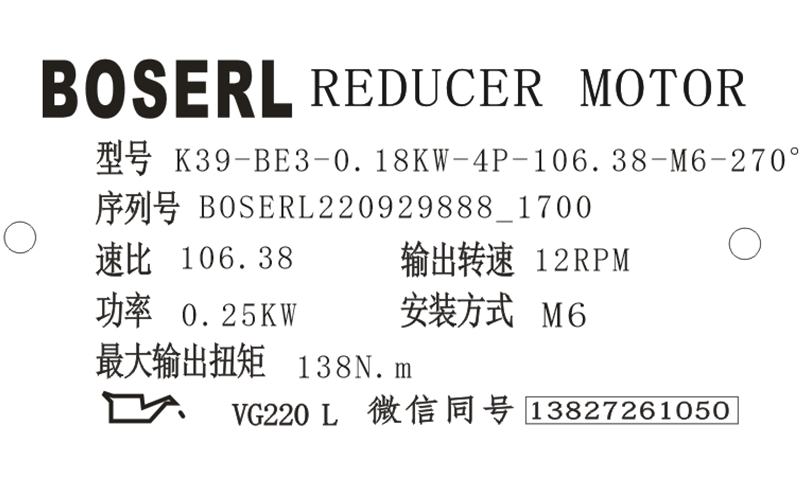

K39減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K39減速器選型樣本。

K39-BE3-0.18KW-4P-106.38-M6-270°

K：系列代號

39：減速機規格代號

BE3：電機

0.18KW：電機功率

4P：電機級數

106.38：減速機傳動比

M6：減速機安裝位置

270°：接線盒位置

K39減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

K39減速器安裝所需工具以及材料：

由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。K39減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K39減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K39減速器的安裝位置改變為M5或M6，或者M5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將K39減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在K39減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對K39減速器箱體進行連接接地。直角減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（K39減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

K39減速器故障售后服務統籌：

K39減速器潤滑油泄露：K39減速器密封面密封性能不良，擰緊K39減速器蓋上的螺釘并觀察K39減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；K39減速器透氣閥失效，給K39減速器透氣參見“K39減速器說明書的安裝位置”章節。齒輪減速電機

K39減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“K39減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“K39減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；

K39減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“K39減速器說明書的檢查/維護”章節；K39減速器安裝位置錯誤，正確安裝透氣閥參見“K39減速器說明書的安裝位置”章節，調節油位參見“K39減速器說明書的檢查/維護”章節。

K39減速器電機或輸入軸轉動，而輸出軸不轉：K39減速器中的軸輪轂聯接斷裂，將K39減速器或減速電機送來我司修理。K系列減速機

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對K39減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。

K39減速器型號：

K39-Y0.12KW，K39-Y0.18KW，K39-Y0.25KW，K39-Y0.37KW，K39-Y0.55KW，K39-Y0.75KW，K39-Y1.1KW，K39-Y1.5KW，K39-Y100M4，K39-Y2.2KW，K39-Y3KW，K39-Y63M4，K39-Y71M4，K39-Y80M4，K39-Y90M4，K39-YB100M4，K39-YB63M4，K39-YB71M4，K39-YB80M4，K39-YB90M4，K39-YDP100M4，K39-YDP63M4，K39-YDP71M4，K39-YDP80M4，K39-YDP90M4，K39-YE100M4，K39-YE63M4，K39-YE71M4，K39-YE80M4，K39-YE90M4，K39-YEJ100M4，K39-YEJ63M4，K39-YEJ71M4，K39-YEJ80M4，K39-YEJ90M4，K39-YEJB100M4，K39-YEJB63M4，K39-YEJB71M4，K39-YEJB80M4，K39-YEJB90M4，K39-YP100M4，K39-YP63M4，K39-YP71M4，K39-YP80M4，K39-YP90M4，K39-YPB100M4，K39-YPB63M4，K39-YPB71M4，K39-YPB80M4，K39-YPB90M4，K39-YPE100M4，K39-YPE63M4，K39-YPE71M4，K39-YPE80M4，K39-YPE90M4，K39-YS100M4，K39-YS63M4，K39-YS71M4，K39-YS80M4，K39-YS90M4，K39-YVB100M4，K39-YVB63M4，K39-YVB71M4，K39-YVB80M4，K39-YVB90M4，K39-YVP100M4，K39-YVP63M4，K39-YVP71M4，K39-YVP80M4，K39-YVP90M4，K39-YVPEJ100M4，K39-YVPEJ63M4，K39-YVPEJ71M4，K39-YVPEJ80M4，K39-YVPEJ90M4，XDK37-Y0.12KW，XDK37-Y0.18KW，XDK37-Y0.25KW，XDK37-Y0.37KW，XDK37-Y0.55KW，XDK37-Y0.75KW，XDK37-Y1.1KW，XDK37-Y1.5KW，XDK37-Y100M4，XDK37-Y2.2KW，XDK37-Y3KW，XDK37-Y63M4，XDK37-Y71M4，XDK37-Y80M4，XDK37-Y90M4，XDK37-YB100M4，XDK37-YB63M4，XDK37-YB71M4，XDK37-YB80M4，XDK37-YB90M4，XDK37-YDP100M4，XDK37-YDP63M4，XDK37-YDP71M4，XDK37-YDP80M4，XDK37-YDP90M4，XDK37-YE100M4，XDK37-YE63M4，XDK37-YE71M4，XDK37-YE80M4，XDK37-YE90M4，XDK37-YEJ100M4，XDK37-YEJ63M4，XDK37-YEJ71M4，XDK37-YEJ80M4，XDK37-YEJ90M4，XDK37-YEJB100M4，XDK37-YEJB63M4，XDK37-YEJB71M4，XDK37-YEJB80M4，XDK37-YEJB90M4，XDK37-YP100M4，XDK37-YP63M4，XDK37-YP71M4，XDK37-YP80M4，XDK37-YP90M4，XDK37-YPB100M4，XDK37-YPB63M4，XDK37-YPB71M4，XDK37-YPB80M4，XDK37-YPB90M4，XDK37-YPE100M4，XDK37-YPE63M4，XDK37-YPE71M4，XDK37-YPE80M4，XDK37-YPE90M4，XDK37-YS100M4，XDK37-YS63M4，XDK37-YS71M4，XDK37-YS80M4，XDK37-YS90M4，XDK37-YVB100M4，XDK37-YVB63M4，XDK37-YVB71M4，XDK37-YVB80M4，XDK37-YVB90M4，XDK37-YVP100M4，XDK37-YVP63M4，XDK37-YVP71M4，XDK37-YVP80M4，XDK37-YVP90M4，XDK37-YVPEJ100M4，XDK37-YVPEJ63M4，XDK37-YVPEJ71M4，XDK37-YVPEJ80M4，XDK37-YVPEJ90M4，YQK37-Y0.12KW，YQK37-Y0.18KW，YQK37-Y0.25KW，YQK37-Y0.37KW，YQK37-Y0.55KW，YQK37-Y0.75KW，YQK37-Y1.1KW，YQK37-Y1.5KW，YQK37-Y100M4，YQK37-Y2.2KW，YQK37-Y3KW，YQK37-Y63M4，YQK37-Y71M4，YQK37-Y80M4，YQK37-Y90M4，YQK37-YB100M4，YQK37-YB63M4，YQK37-YB71M4，YQK37-YB80M4，YQK37-YB90M4，YQK37-YDP100M4，YQK37-YDP63M4，YQK37-YDP71M4，YQK37-YDP80M4，YQK37-YDP90M4，YQK37-YE100M4，YQK37-YE63M4，YQK37-YE71M4，YQK37-YE80M4，YQK37-YE90M4，YQK37-YEJ100M4，YQK37-YEJ63M4，YQK37-YEJ71M4，YQK37-YEJ80M4，YQK37-YEJ90M4，YQK37-YEJB100M4，YQK37-YEJB63M4，YQK37-YEJB71M4，YQK37-YEJB80M4，YQK37-YEJB90M4，YQK37-YP100M4，YQK37-YP63M4，YQK37-YP71M4，YQK37-YP80M4，YQK37-YP90M4，YQK37-YPB100M4，YQK37-YPB63M4，YQK37-YPB71M4，YQK37-YPB80M4，YQK37-YPB90M4，YQK37-YPE100M4，YQK37-YPE63M4，YQK37-YPE71M4，YQK37-YPE80M4，YQK37-YPE90M4，YQK37-YS100M4，YQK37-YS63M4，YQK37-YS71M4，YQK37-YS80M4，YQK37-YS90M4，YQK37-YVB100M4，YQK37-YVB63M4，YQK37-YVB71M4，YQK37-YVB80M4，YQK37-YVB90M4，YQK37-YVP100M4，YQK37-YVP63M4，YQK37-YVP71M4，YQK37-YVP80M4，YQK37-YVP90M4，YQK37-YVPEJ100M4，YQK37-YVPEJ63M4，YQK37-YVPEJ71M4，YQK37-YVPEJ80M4，YQK37-YVPEJ90M4，JCK37-Y0.12KW，JCK37-Y0.18KW，JCK37-Y0.25KW，JCK37-Y0.37KW，JCK37-Y0.55KW，JCK37-Y0.75KW，JCK37-Y1.1KW，JCK37-Y1.5KW，JCK37-Y100M4，JCK37-Y2.2KW，JCK37-Y3KW，JCK37-Y63M4，JCK37-Y71M4，JCK37-Y80M4，JCK37-Y90M4，JCK37-YB100M4，JCK37-YB63M4，JCK37-YB71M4，JCK37-YB80M4，JCK37-YB90M4，JCK37-YDP100M4，JCK37-YDP63M4，JCK37-YDP71M4，JCK37-YDP80M4，JCK37-YDP90M4，JCK37-YE100M4，JCK37-YE63M4，JCK37-YE71M4，JCK37-YE80M4，JCK37-YE90M4，JCK37-YEJ100M4，JCK37-YEJ63M4，JCK37-YEJ71M4，JCK37-YEJ80M4，JCK37-YEJ90M4，JCK37-YEJB100M4，JCK37-YEJB63M4，JCK37-YEJB71M4，JCK37-YEJB80M4，JCK37-YEJB90M4，JCK37-YP100M4，JCK37-YP63M4，JCK37-YP71M4，JCK37-YP80M4，JCK37-YP90M4，JCK37-YPB100M4，JCK37-YPB63M4，JCK37-YPB71M4，JCK37-YPB80M4，JCK37-YPB90M4，JCK37-YPE100M4，JCK37-YPE63M4，JCK37-YPE71M4，JCK37-YPE80M4，JCK37-YPE90M4，JCK37-YS100M4，JCK37-YS63M4，JCK37-YS71M4，JCK37-YS80M4，JCK37-YS90M4，JCK37-YVB100M4，JCK37-YVB63M4，JCK37-YVB71M4，JCK37-YVB80M4，JCK37-YVB90M4，JCK37-YVP100M4，JCK37-YVP63M4，JCK37-YVP71M4，JCK37-YVP80M4，JCK37-YVP90M4，JCK37-YVPEJ100M4，JCK37-YVPEJ63M4，JCK37-YVPEJ71M4，JCK37-YVPEJ80M4，JCK37-YVPEJ90M4，KW37-Y0.12KW，KW37-Y0.18KW，KW37-Y0.25KW，KW37-Y0.37KW，KW37-Y0.55KW，KW37-Y0.75KW，KW37-Y1.1KW，KW37-Y1.5KW，KW37-Y100M4，KW37-Y2.2KW，KW37-Y3KW，KW37-Y63M4，KW37-Y71M4，KW37-Y80M4，KW37-Y90M4，KW37-YB100M4，KW37-YB63M4，KW37-YB71M4，KW37-YB80M4，KW37-YB90M4，KW37-YDP100M4，KW37-YDP63M4，KW37-YDP71M4，KW37-YDP80M4，KW37-YDP90M4，KW37-YE100M4，KW37-YE63M4，KW37-YE71M4，KW37-YE80M4，KW37-YE90M4，KW37-YEJ100M4，KW37-YEJ63M4，KW37-YEJ71M4，KW37-YEJ80M4，KW37-YEJ90M4，KW37-YEJB100M4，KW37-YEJB63M4，KW37-YEJB71M4，KW37-YEJB80M4，KW37-YEJB90M4，KW37-YP100M4，KW37-YP63M4，KW37-YP71M4，KW37-YP80M4，KW37-YP90M4，KW37-YPB100M4，KW37-YPB63M4，KW37-YPB71M4，KW37-YPB80M4，KW37-YPB90M4，KW37-YPE100M4，KW37-YPE63M4，KW37-YPE71M4，KW37-YPE80M4，KW37-YPE90M4，KW37-YS100M4，KW37-YS63M4，KW37-YS71M4，KW37-YS80M4，KW37-YS90M4，KW37-YVB100M4，KW37-YVB63M4，KW37-YVB71M4，KW37-YVB80M4，KW37-YVB90M4，KW37-YVP100M4，KW37-YVP63M4，KW37-YVP71M4，KW37-YVP80M4，KW37-YVP90M4，KW37-YVPEJ100M4，KW37-YVPEJ63M4，KW37-YVPEJ71M4，KW37-YVPEJ80M4，KW37-YVPEJ90M4，K37SF80，K37SF90，K37SF100，K37SF112，K37SF115，K37SF140，K37SF160，K37SF190。
