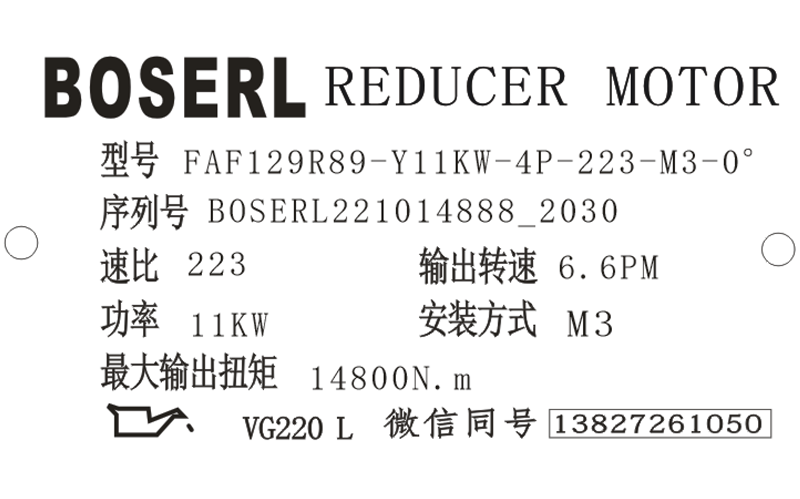

FAF129R89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF129R89減速機選型樣本。

FAF129R89-Y11KW-4P-223-M3-0°

FAF/R：系列代號

129/89：減速機規格代號

Y：電機

11KW：電機功率

4P：電機級數

223：減速機傳動比

M3：減速機安裝位置

0°：接線盒位置

FAF129R89減速機電機接線操作圖：

電氣操作必須由合格的專業人員，在低壓設備斷電停機且不會意外重新啟動的前提條件下執行。對輔助電路（比如:外部風機）也如此。否則可能會有觸電或人員受傷的危險。齒輪減速電機

超出EN 60034-1標準（VDE0530標準第1部分）規定的公差（電壓+5%、頻率+2%）,會導致設備升溫并影響設備的電磁兼容性。各型號具體的接線圖以各電機銘牌上的為準。

將3根電源線的任意2根接線交換，將可改變三相電機的旋轉方向。平行軸斜齒輪減速機

以下為各類型電機各自的電氣接線圖：

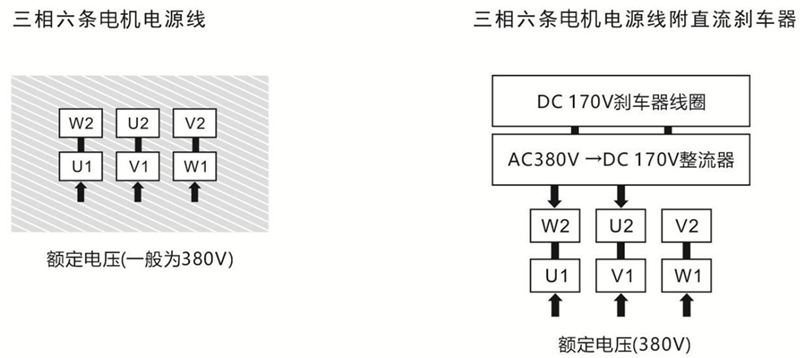

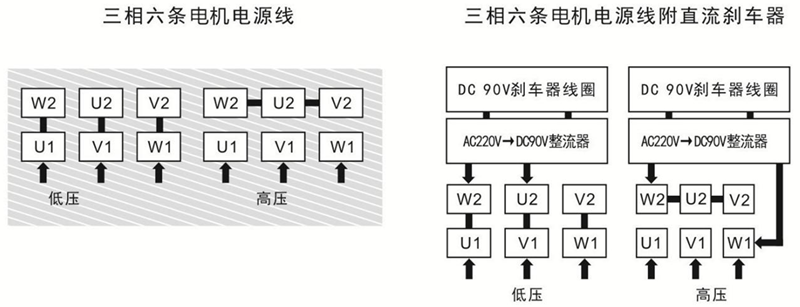

一、FAF129R89減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（無變頻器）

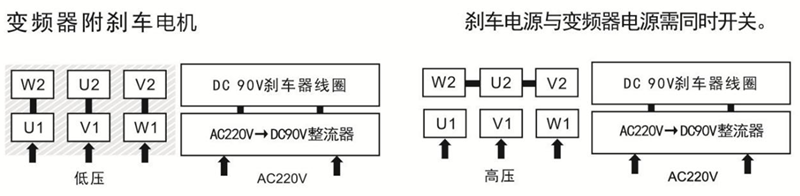

二、FAF129R89減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（有變頻器）

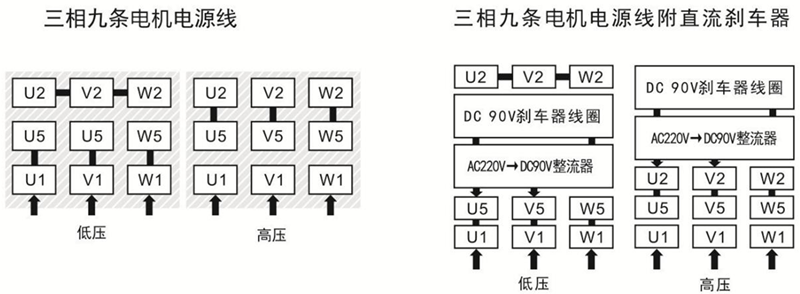

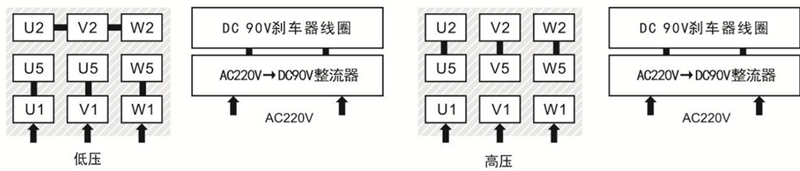

三、FAF129R89減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（無變頻器）

四、FAF129R89減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（有變頻器）

五、FAF129R89減速機電機5.5KW以上三相電機及剎車器接線方式（無變頻器）

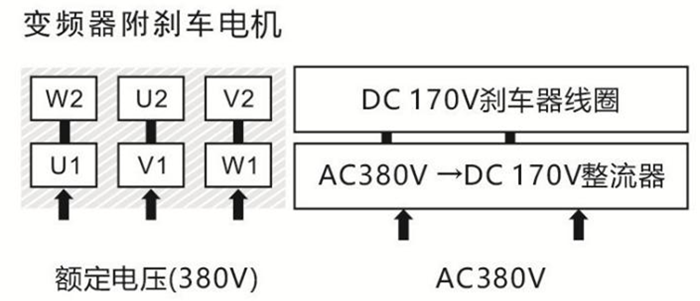

六、FAF129R89減速機電機5.5KW以上三相電機及剎車器接線方式（有變頻）變頻電機減速機

FAF129R89減速電機型號：

YQFAF127R87-Y11KW，YQFAF127R87-Y132M4，YQFAF127R87-Y160M4，YQFAF127R87-Y5.5KW，YQFAF127R87-Y7.5KW，YQFAF127RF87-Y132M4，YQFAF127RF87-Y160M4，YQFAF127RF87-YB132M4，YQFAF127RF87-YB160M4，YQFAF127RF87-YDP132M4，YQFAF127RF87-YDP160M4，YQFAF127RF87-YE132M4，YQFAF127RF87-YE160M4，YQFAF127RF87-YEJ132M4，YQFAF127RF87-YEJ160M4，YQFAF127RF87-YEJB132M4，YQFAF127RF87-YEJB160M4，YQFAF127RF87-YP132M4，YQFAF127RF87-YP160M4，YQFAF127RF87-YPB132M4，YQFAF127RF87-YPB160M4，YQFAF127RF87-YPE132M4，YQFAF127RF87-YPE160M4，YQFAF127RF87-YS132M4，YQFAF127RF87-YS160M4，YQFAF127RF87-YVB132M4，YQFAF127RF87-YVB160M4，YQFAF127RF87-YVP132M4，YQFAF127RF87-YVP160M4，YQFAF127RF87-YVPEJ132M4，YQFAF127RF87-YVPEJ160M4，NFAF127R87-Y11KW，NFAF127R87-Y132M4，NFAF127R87-Y160M4，NFAF127R87-Y5.5KW，NFAF127R87-Y7.5KW，NFAF127RF87-Y132M4，NFAF127RF87-Y160M4，NFAF127RF87-YB132M4，NFAF127RF87-YB160M4，NFAF127RF87-YDP132M4，NFAF127RF87-YDP160M4，NFAF127RF87-YE132M4，NFAF127RF87-YE160M4，NFAF127RF87-YEJ132M4，NFAF127RF87-YEJ160M4，NFAF127RF87-YEJB132M4，NFAF127RF87-YEJB160M4，NFAF127RF87-YP132M4，NFAF127RF87-YP160M4，NFAF127RF87-YPB132M4，NFAF127RF87-YPB160M4，NFAF127RF87-YPE132M4，NFAF127RF87-YPE160M4，NFAF127RF87-YS132M4，NFAF127RF87-YS160M4，NFAF127RF87-YVB132M4，NFAF127RF87-YVB160M4，NFAF127RF87-YVP132M4，NFAF127RF87-YVP160M4，NFAF127RF87-YVPEJ132M4，NFAF127RF87-YVPEJ160M4，AFAF127R87-Y11KW，AFAF127R87-Y132M4，AFAF127R87-Y160M4，AFAF127R87-Y5.5KW，AFAF127R87-Y7.5KW，AFAF127RF87-Y132M4，AFAF127RF87-Y160M4，AFAF127RF87-YB132M4，AFAF127RF87-YB160M4，AFAF127RF87-YDP132M4，AFAF127RF87-YDP160M4，AFAF127RF87-YE132M4，AFAF127RF87-YE160M4，AFAF127RF87-YEJ132M4，AFAF127RF87-YEJ160M4，AFAF127RF87-YEJB132M4，AFAF127RF87-YEJB160M4，AFAF127RF87-YP132M4，AFAF127RF87-YP160M4，AFAF127RF87-YPB132M4，AFAF127RF87-YPB160M4，AFAF127RF87-YPE132M4，AFAF127RF87-YPE160M4，AFAF127RF87-YS132M4，AFAF127RF87-YS160M4，AFAF127RF87-YVB132M4，AFAF127RF87-YVB160M4，AFAF127RF87-YVP132M4，AFAF127RF87-YVP160M4，AFAF127RF87-YVPEJ132M4，AFAF127RF87-YVPEJ160M4，XDFAF127R87-Y11KW，XDFAF127R87-Y132M4，XDFAF127R87-Y160M4，XDFAF127R87-Y5.5KW，XDFAF127R87-Y7.5KW，XDFAF127RF87-Y132M4，XDFAF127RF87-Y160M4，XDFAF127RF87-YB132M4，XDFAF127RF87-YB160M4，XDFAF127RF87-YDP132M4，XDFAF127RF87-YDP160M4，XDFAF127RF87-YE132M4，XDFAF127RF87-YE160M4，XDFAF127RF87-YEJ132M4，XDFAF127RF87-YEJ160M4，XDFAF127RF87-YEJB132M4，XDFAF127RF87-YEJB160M4，XDFAF127RF87-YP132M4，XDFAF127RF87-YP160M4，XDFAF127RF87-YPB132M4，XDFAF127RF87-YPB160M4，XDFAF127RF87-YPE132M4，XDFAF127RF87-YPE160M4，XDFAF127RF87-YS132M4，XDFAF127RF87-YS160M4，XDFAF127RF87-YVB132M4，XDFAF127RF87-YVB160M4，XDFAF127RF87-YVP132M4，XDFAF127RF87-YVP160M4，XDFAF127RF87-YVPEJ132M4，XDFAF127RF87-YVPEJ160M4，JCFAF127R87-Y11KW，JCFAF127R87-Y132M4，JCFAF127R87-Y160M4，JCFAF127R87-Y5.5KW，JCFAF127R87-Y7.5KW，JCFAF127RF87-Y132M4，JCFAF127RF87-Y160M4，JCFAF127RF87-YB132M4，JCFAF127RF87-YB160M4，JCFAF127RF87-YDP132M4，JCFAF127RF87-YDP160M4，JCFAF127RF87-YE132M4，JCFAF127RF87-YE160M4，JCFAF127RF87-YEJ132M4，JCFAF127RF87-YEJ160M4，JCFAF127RF87-YEJB132M4，JCFAF127RF87-YEJB160M4，JCFAF127RF87-YP132M4，JCFAF127RF87-YP160M4，JCFAF127RF87-YPB132M4，JCFAF127RF87-YPB160M4，JCFAF127RF87-YPE132M4，JCFAF127RF87-YPE160M4，JCFAF127RF87-YS132M4，JCFAF127RF87-YS160M4，JCFAF127RF87-YVB132M4，JCFAF127RF87-YVB160M4，JCFAF127RF87-YVP132M4，JCFAF127RF87-YVP160M4，JCFAF127RF87-YVPEJ132M4，JCFAF127RF87-YVPEJ160M4，SFAF127R87-Y11KW，SFAF127R87-Y132M4，SFAF127R87-Y160M4，SFAF127R87-Y5.5KW，SFAF127R87-Y7.5KW，SFAF127RF87-Y132M4，SFAF127RF87-Y160M4，SFAF127RF87-YB132M4，SFAF127RF87-YB160M4，SFAF127RF87-YDP132M4，SFAF127RF87-YDP160M4，SFAF127RF87-YE132M4，SFAF127RF87-YE160M4，SFAF127RF87-YEJ132M4，SFAF127RF87-YEJ160M4，SFAF127RF87-YEJB132M4，SFAF127RF87-YEJB160M4，SFAF127RF87-YP132M4，SFAF127RF87-YP160M4，SFAF127RF87-YPB132M4，SFAF127RF87-YPB160M4，SFAF127RF87-YPE132M4，SFAF127RF87-YPE160M4，SFAF127RF87-YS132M4，SFAF127RF87-YS160M4，SFAF127RF87-YVB132M4，SFAF127RF87-YVB160M4，SFAF127RF87-YVP132M4，SFAF127RF87-YVP160M4，SFAF127RF87-YVPEJ132M4，SFAF127RF87-YVPEJ160M4，WFAF127R87-Y11KW，WFAF127R87-Y132M4，WFAF127R87-Y160M4，WFAF127R87-Y5.5KW，WFAF127R87-Y7.5KW，WFAF127RF87-Y132M4，WFAF127RF87-Y160M4，WFAF127RF87-YB132M4，WFAF127RF87-YB160M4，WFAF127RF87-YDP132M4，WFAF127RF87-YDP160M4，WFAF127RF87-YE132M4，WFAF127RF87-YE160M4，WFAF127RF87-YEJ132M4，WFAF127RF87-YEJ160M4，WFAF127RF87-YEJB132M4，WFAF127RF87-YEJB160M4，WFAF127RF87-YP132M4，WFAF127RF87-YP160M4，WFAF127RF87-YPB132M4，WFAF127RF87-YPB160M4，WFAF127RF87-YPE132M4，WFAF127RF87-YPE160M4，WFAF127RF87-YS132M4，WFAF127RF87-YS160M4，WFAF127RF87-YVB132M4，WFAF127RF87-YVB160M4，WFAF127RF87-YVP132M4，WFAF127RF87-YVP160M4，WFAF127RF87-YVPEJ132M4，WFAF127RF87-YVPEJ160M4，FWAF127RW87-Y11KW，FWAF127RW87-Y132M4，FWAF127RW87-Y160M4，FWAF127RW87-Y5.5KW，FWAF127RW87-Y7.5KW，FWAF127RWFAF87-Y132M4，FWAF127RWFAF87-Y160M4，FWAF127RWFAF87-YB132M4，FWAF127RWFAF87-YB160M4，FWAF127RWFAF87-YDP132M4，FWAF127RWFAF87-YDP160M4，FWAF127RWFAF87-YE132M4，FWAF127RWFAF87-YE160M4，FWAF127RWFAF87-YEJ132M4，FWAF127RWFAF87-YEJ160M4，FWAF127RWFAF87-YEJB132M4，FWAF127RWFAF87-YEJB160M4，FWAF127RWFAF87-YP132M4，FWAF127RWFAF87-YP160M4，FWAF127RWFAF87-YPB132M4，FWAF127RWFAF87-YPB160M4，FWAF127RWFAF87-YPE132M4，FWAF127RWFAF87-YPE160M4，FWAF127RWFAF87-YS132M4，FWAF127RWFAF87-YS160M4，FWAF127RWFAF87-YVB132M4，FWAF127RWFAF87-YVB160M4，FWAF127RWFAF87-YVP132M4，FWAF127RWFAF87-YVP160M4，FWAF127RWFAF87-YVPEJ132M4，FWAF127RWFAF87-YVPEJ160M4，FAF129R89-Y11KW，FAF129R89-Y132M4，FAF129R89-Y160M4，FAF129R89-Y5.5KW，FAF129R89-Y7.5KW，FAF129RF89-Y132M4，FAF129RF89-Y160M4，FAF129RF89-YB132M4，FAF129RF89-YB160M4，FAF129RF89-YDP132M4，FAF129RF89-YDP160M4，FAF129RF89-YE132M4，FAF129RF89-YE160M4，FAF129RF89-YEJ132M4，FAF129RF89-YEJ160M4，FAF129RF89-YEJB132M4，FAF129RF89-YEJB160M4，FAF129RF89-YP132M4，FAF129RF89-YP160M4，FAF129RF89-YPB132M4，FAF129RF89-YPB160M4，FAF129RF89-YPE132M4，FAF129RF89-YPE160M4，FAF129RF89-YS132M4，FAF129RF89-YS160M4，FAF129RF89-YVB132M4，FAF129RF89-YVB160M4，FAF129RF89-YVP132M4，FAF129RF89-YVP160M4，FAF129RF89-YVPEJ132M4，FAF129RF89-YVPEJ160M4。
