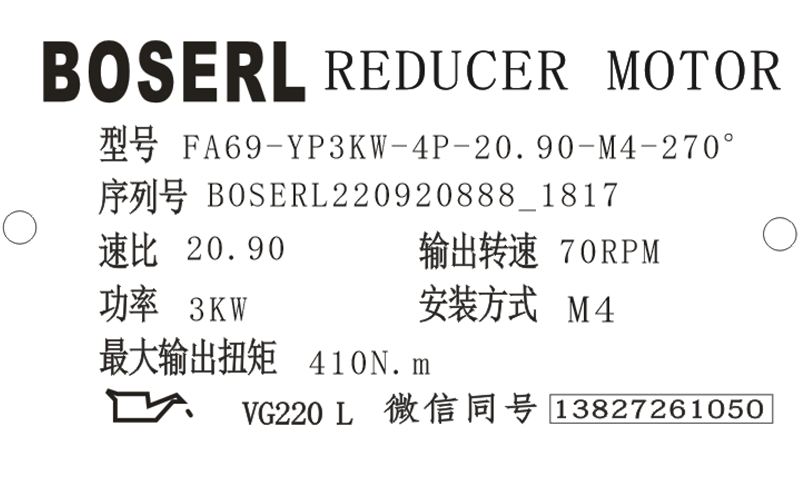

FA69減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F69減速機選型樣本。

FA69-YP3KW-4P-20.90-M4-270°

FA：系列代號

69：減速機規格代號

YP：電機

3KW：電機功率

4P：電機級數

20.90：減速機傳動比

M4：減速機安裝位置

270°：接線盒位置

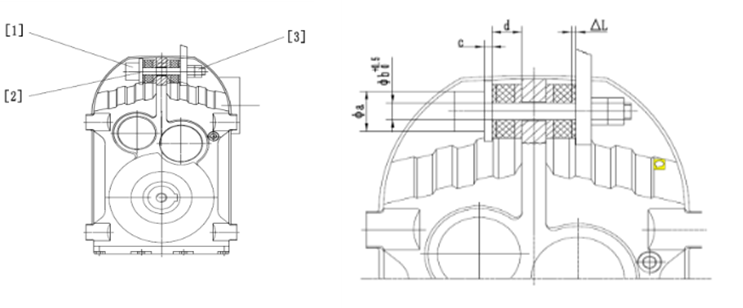

FA69減速機扭力臂安裝：

請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA69減速機的扭力臂安裝示意圖：齒輪減速電機

FA69減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA69減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機

FA69減速機型號：

WFA67-Y0.18KW，WFA67-Y0.25KW，WFA67-Y0.37KW，WFA67-Y0.55KW，WFA67-Y0.75KW，WFA67-Y1.1KW，WFA67-Y1.5KW，WFA67-Y100M4，WFA67-Y112M4，WFA67-Y132M4，WFA67-Y2.2KW，WFA67-Y3KW，WFA67-Y4KW，WFA67-Y5.5KW，WFA67-Y63M4，WFA67-Y71M4，WFA67-Y80M4，WFA67-Y90M4，WFA67-YB100M4，WFA67-YB112M4，WFA67-YB132M4，WFA67-YB63M4，WFA67-YB71M4，WFA67-YB80M4，WFA67-YB90M4，WFA67-YDP100M4，WFA67-YDP112M4，WFA67-YDP132M4，WFA67-YDP63M4，WFA67-YDP71M4，WFA67-YDP80M4，WFA67-YDP90M4，WFA67-YE100M4，WFA67-YE112M4，WFA67-YE132M4，WFA67-YE63M4，WFA67-YE71M4，WFA67-YE80M4，WFA67-YE90M4，WFA67-YEJ100M4，WFA67-YEJ112M4，WFA67-YEJ132M4，WFA67-YEJ63M4，WFA67-YEJ71M4，WFA67-YEJ80M4，WFA67-YEJ90M4，WFA67-YEJB100M4，WFA67-YEJB112M4，WFA67-YEJB132M4，WFA67-YEJB63M4，WFA67-YEJB71M4，WFA67-YEJB80M4，WFA67-YEJB90M4，WFA67-YP100M4，WFA67-YP112M4，WFA67-YP132M4，WFA67-YP63M4，WFA67-YP71M4，WFA67-YP80M4，WFA67-YP90M4，WFA67-YPB100M4，WFA67-YPB112M4，WFA67-YPB132M4，WFA67-YPB63M4，WFA67-YPB71M4，WFA67-YPB80M4，WFA67-YPB90M4，WFA67-YPE100M4，WFA67-YPE112M4，WFA67-YPE132M4，WFA67-YPE63M4，WFA67-YPE71M4，WFA67-YPE80M4，WFA67-YPE90M4，WFA67-YS100M4，WFA67-YS112M4，WFA67-YS132M4，WFA67-YS63M4，WFA67-YS71M4，WFA67-YS80M4，WFA67-YS90M4，WFA67-YVB100M4，WFA67-YVB112M4，WFA67-YVB132M4，WFA67-YVB63M4，WFA67-YVB71M4，WFA67-YVB80M4，WFA67-YVB90M4，WFA67-YVP100M4，WFA67-YVP112M4，WFA67-YVP132M4，WFA67-YVP63M4，WFA67-YVP71M4，WFA67-YVP80M4，WFA67-YVP90M4，WFA67-YVPEJ100M4，WFA67-YVPEJ112M4，WFA67-YVPEJ132M4，WFA67-YVPEJ63M4，WFA67-YVPEJ71M4，WFA67-YVPEJ80M4，WFA67-YVPEJ90M4，SFA67-Y0.18KW，SFA67-Y0.25KW，SFA67-Y0.37KW，SFA67-Y0.55KW，SFA67-Y0.75KW，SFA67-Y1.1KW，SFA67-Y1.5KW，SFA67-Y100M4，SFA67-Y112M4，SFA67-Y132M4，SFA67-Y2.2KW，SFA67-Y3KW，SFA67-Y4KW，SFA67-Y5.5KW，SFA67-Y63M4，SFA67-Y71M4，SFA67-Y80M4，SFA67-Y90M4，SFA67-YB100M4，SFA67-YB112M4，SFA67-YB132M4，SFA67-YB63M4，SFA67-YB71M4，SFA67-YB80M4，SFA67-YB90M4，SFA67-YDP100M4，SFA67-YDP112M4，SFA67-YDP132M4，SFA67-YDP63M4，SFA67-YDP71M4，SFA67-YDP80M4，SFA67-YDP90M4，SFA67-YE100M4，SFA67-YE112M4，SFA67-YE132M4，SFA67-YE63M4，SFA67-YE71M4，SFA67-YE80M4，SFA67-YE90M4，SFA67-YEJ100M4，SFA67-YEJ112M4，SFA67-YEJ132M4，SFA67-YEJ63M4，SFA67-YEJ71M4，SFA67-YEJ80M4，SFA67-YEJ90M4，SFA67-YEJB100M4，SFA67-YEJB112M4，SFA67-YEJB132M4，SFA67-YEJB63M4，SFA67-YEJB71M4，SFA67-YEJB80M4，SFA67-YEJB90M4，SFA67-YP100M4，SFA67-YP112M4，SFA67-YP132M4，SFA67-YP63M4，SFA67-YP71M4，SFA67-YP80M4，SFA67-YP90M4，SFA67-YPB100M4，SFA67-YPB112M4，SFA67-YPB132M4，SFA67-YPB63M4，SFA67-YPB71M4，SFA67-YPB80M4，SFA67-YPB90M4，SFA67-YPE100M4，SFA67-YPE112M4，SFA67-YPE132M4，SFA67-YPE63M4，SFA67-YPE71M4，SFA67-YPE80M4，SFA67-YPE90M4，SFA67-YS100M4，SFA67-YS112M4，SFA67-YS132M4，SFA67-YS63M4，SFA67-YS71M4，SFA67-YS80M4，SFA67-YS90M4，SFA67-YVB100M4，SFA67-YVB112M4，SFA67-YVB132M4，SFA67-YVB63M4，SFA67-YVB71M4，SFA67-YVB80M4，SFA67-YVB90M4，SFA67-YVP100M4，SFA67-YVP112M4，SFA67-YVP132M4，SFA67-YVP63M4，SFA67-YVP71M4，SFA67-YVP80M4，SFA67-YVP90M4，SFA67-YVPEJ100M4，SFA67-YVPEJ112M4，SFA67-YVPEJ132M4，SFA67-YVPEJ63M4，SFA67-YVPEJ71M4，SFA67-YVPEJ80M4，SFA67-YVPEJ90M4，NFA67-Y0.18KW，NFA67-Y0.25KW，NFA67-Y0.37KW，NFA67-Y0.55KW，NFA67-Y0.75KW，NFA67-Y1.1KW，NFA67-Y1.5KW，NFA67-Y100M4，NFA67-Y112M4，NFA67-Y132M4，NFA67-Y2.2KW，NFA67-Y3KW，NFA67-Y4KW，NFA67-Y5.5KW，NFA67-Y63M4，NFA67-Y71M4，NFA67-Y80M4，NFA67-Y90M4，NFA67-YB100M4，NFA67-YB112M4，NFA67-YB132M4，NFA67-YB63M4，NFA67-YB71M4，NFA67-YB80M4，NFA67-YB90M4，NFA67-YDP100M4，NFA67-YDP112M4，NFA67-YDP132M4，NFA67-YDP63M4，NFA67-YDP71M4，NFA67-YDP80M4，NFA67-YDP90M4，NFA67-YE100M4，NFA67-YE112M4，NFA67-YE132M4，NFA67-YE63M4，NFA67-YE71M4，NFA67-YE80M4，NFA67-YE90M4，NFA67-YEJ100M4，NFA67-YEJ112M4，NFA67-YEJ132M4，NFA67-YEJ63M4，NFA67-YEJ71M4，NFA67-YEJ80M4，NFA67-YEJ90M4，NFA67-YEJB100M4，NFA67-YEJB112M4，NFA67-YEJB132M4，NFA67-YEJB63M4，NFA67-YEJB71M4，NFA67-YEJB80M4，NFA67-YEJB90M4，NFA67-YP100M4，NFA67-YP112M4，NFA67-YP132M4，NFA67-YP63M4，NFA67-YP71M4，NFA67-YP80M4，NFA67-YP90M4，NFA67-YPB100M4，NFA67-YPB112M4，NFA67-YPB132M4，NFA67-YPB63M4，NFA67-YPB71M4，NFA67-YPB80M4，NFA67-YPB90M4，NFA67-YPE100M4，NFA67-YPE112M4，NFA67-YPE132M4，NFA67-YPE63M4，NFA67-YPE71M4，NFA67-YPE80M4，NFA67-YPE90M4，NFA67-YS100M4，NFA67-YS112M4，NFA67-YS132M4，NFA67-YS63M4，NFA67-YS71M4，NFA67-YS80M4，NFA67-YS90M4，NFA67-YVB100M4，NFA67-YVB112M4，NFA67-YVB132M4，NFA67-YVB63M4，NFA67-YVB71M4，NFA67-YVB80M4，NFA67-YVB90M4，NFA67-YVP100M4，NFA67-YVP112M4，NFA67-YVP132M4，NFA67-YVP63M4，NFA67-YVP71M4，NFA67-YVP80M4，NFA67-YVP90M4，NFA67-YVPEJ100M4，NFA67-YVPEJ112M4，NFA67-YVPEJ132M4，NFA67-YVPEJ63M4，NFA67-YVPEJ71M4，NFA67-YVPEJ80M4，NFA67-YVPEJ90M4，AFA67-Y0.18KW，AFA67-Y0.25KW，AFA67-Y0.37KW，AFA67-Y0.55KW，AFA67-Y0.75KW，AFA67-Y1.1KW，AFA67-Y1.5KW，AFA67-Y100M4，AFA67-Y112M4，AFA67-Y132M4，AFA67-Y2.2KW，AFA67-Y3KW，AFA67-Y4KW，AFA67-Y5.5KW，AFA67-Y63M4，AFA67-Y71M4，AFA67-Y80M4，AFA67-Y90M4，AFA67-YB100M4，AFA67-YB112M4，AFA67-YB132M4，AFA67-YB63M4，AFA67-YB71M4，AFA67-YB80M4，AFA67-YB90M4，AFA67-YDP100M4，AFA67-YDP112M4，AFA67-YDP132M4，AFA67-YDP63M4，AFA67-YDP71M4，AFA67-YDP80M4，AFA67-YDP90M4，AFA67-YE100M4，AFA67-YE112M4，AFA67-YE132M4，AFA67-YE63M4，AFA67-YE71M4，AFA67-YE80M4，AFA67-YE90M4，AFA67-YEJ100M4，AFA67-YEJ112M4，AFA67-YEJ132M4，AFA67-YEJ63M4，AFA67-YEJ71M4，AFA67-YEJ80M4，AFA67-YEJ90M4，AFA67-YEJB100M4，AFA67-YEJB112M4，AFA67-YEJB132M4，AFA67-YEJB63M4，AFA67-YEJB71M4，AFA67-YEJB80M4，AFA67-YEJB90M4，AFA67-YP100M4，AFA67-YP112M4，AFA67-YP132M4，AFA67-YP63M4，AFA67-YP71M4，AFA67-YP80M4，AFA67-YP90M4，AFA67-YPB100M4，AFA67-YPB112M4，AFA67-YPB132M4，AFA67-YPB63M4，AFA67-YPB71M4，AFA67-YPB80M4，AFA67-YPB90M4，AFA67-YPE100M4，AFA67-YPE112M4，AFA67-YPE132M4，AFA67-YPE63M4，AFA67-YPE71M4，AFA67-YPE80M4，AFA67-YPE90M4，AFA67-YS100M4，AFA67-YS112M4，AFA67-YS132M4，AFA67-YS63M4，AFA67-YS71M4，AFA67-YS80M4，AFA67-YS90M4，AFA67-YVB100M4，AFA67-YVB112M4，AFA67-YVB132M4，AFA67-YVB63M4，AFA67-YVB71M4，AFA67-YVB80M4，AFA67-YVB90M4，AFA67-YVP100M4，AFA67-YVP112M4，AFA67-YVP132M4，AFA67-YVP63M4，AFA67-YVP71M4，AFA67-YVP80M4，AFA67-YVP90M4，AFA67-YVPEJ100M4，AFA67-YVPEJ112M4，AFA67-YVPEJ132M4，AFA67-YVPEJ63M4，AFA67-YVPEJ71M4，AFA67-YVPEJ80M4，AFA67-YVPEJ90M4，GFA69-Y0.18KW，GFA69-Y0.25KW，GFA69-Y0.37KW，GFA69-Y0.55KW，GFA69-Y0.75KW，GFA69-Y1.1KW，GFA69-Y1.5KW，GFA69-Y100M4，GFA69-Y112M4，GFA69-Y132M4，GFA69-Y2.2KW，GFA69-Y3KW，GFA69-Y4KW，GFA69-Y5.5KW，GFA69-Y63M4，GFA69-Y71M4，GFA69-Y80M4，GFA69-Y90M4，GFA69-YB100M4，GFA69-YB112M4，GFA69-YB132M4，GFA69-YB63M4，GFA69-YB71M4，GFA69-YB80M4，GFA69-YB90M4，GFA69-YDP100M4，GFA69-YDP112M4，GFA69-YDP132M4，GFA69-YDP63M4，GFA69-YDP71M4，GFA69-YDP80M4，GFA69-YDP90M4，GFA69-YE100M4，GFA69-YE112M4，GFA69-YE132M4，GFA69-YE63M4，GFA69-YE71M4，GFA69-YE80M4，GFA69-YE90M4，GFA69-YEJ100M4，GFA69-YEJ112M4，GFA69-YEJ132M4，GFA69-YEJ63M4，GFA69-YEJ71M4，GFA69-YEJ80M4，GFA69-YEJ90M4，GFA69-YEJB100M4，GFA69-YEJB112M4，GFA69-YEJB132M4，GFA69-YEJB63M4，GFA69-YEJB71M4，GFA69-YEJB80M4，GFA69-YEJB90M4，GFA69-YP100M4，GFA69-YP112M4，GFA69-YP132M4，GFA69-YP63M4，GFA69-YP71M4，GFA69-YP80M4，GFA69-YP90M4，GFA69-YPB100M4，GFA69-YPB112M4，GFA69-YPB132M4，GFA69-YPB63M4，GFA69-YPB71M4，GFA69-YPB80M4，GFA69-YPB90M4，GFA69-YPE100M4，GFA69-YPE112M4，GFA69-YPE132M4，GFA69-YPE63M4，GFA69-YPE71M4，GFA69-YPE80M4，GFA69-YPE90M4，GFA69-YS100M4，GFA69-YS112M4，GFA69-YS132M4，GFA69-YS63M4，GFA69-YS71M4，GFA69-YS80M4，GFA69-YS90M4，GFA69-YVB100M4，GFA69-YVB112M4，GFA69-YVB132M4，GFA69-YVB63M4，GFA69-YVB71M4，GFA69-YVB80M4，GFA69-YVB90M4，GFA69-YVP100M4，GFA69-YVP112M4，GFA69-YVP132M4，GFA69-YVP63M4，GFA69-YVP71M4，GFA69-YVP80M4，GFA69-YVP90M4，GFA69-YVPEJ100M4，GFA69-YVPEJ112M4，GFA69-YVPEJ132M4，GFA69-YVPEJ63M4，GFA69-YVPEJ71M4，GFA69-YVPEJ80M4，GFA69-YVPEJ90M4。

FA69減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.hnwshg.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F69減速機
